SB Jack & Nuts

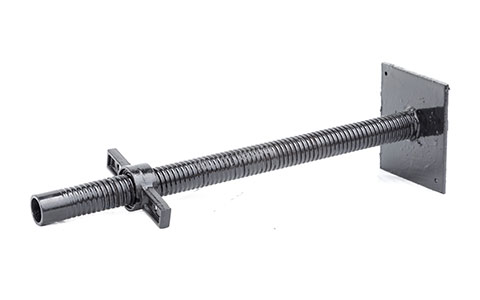

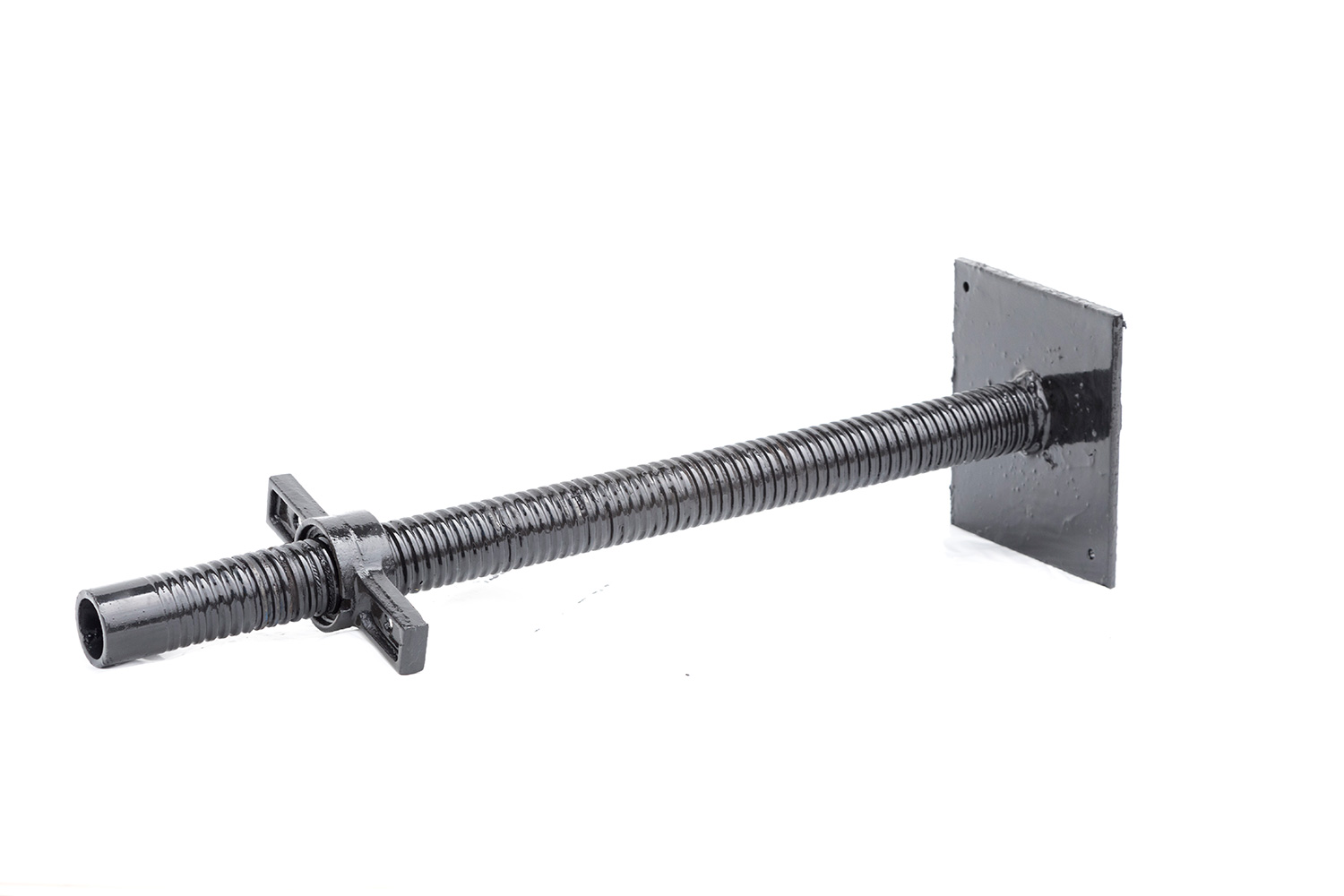

ADJUSTABLE BASE JACK
| CODE | TUBE (mm) | TL/AL (m) | WEIGHT (kg) |
| SB - 1144 | 38 x 4 | 0.450 / 0.300 | 3.045 |
| SB - 1145 | 38 x 4 | 0.550 / 0.400 | 3.380 |
| SB - 1146 | 38 x 4 | 0.650 / 0.500 | 3.715 |
| SB - 1147 | 38 x 4 | 0.750 / 0.600 | 4.050 |
Adjustable Base Jack

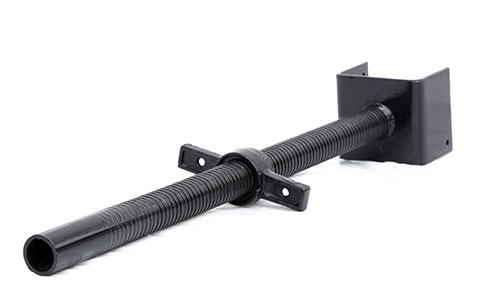

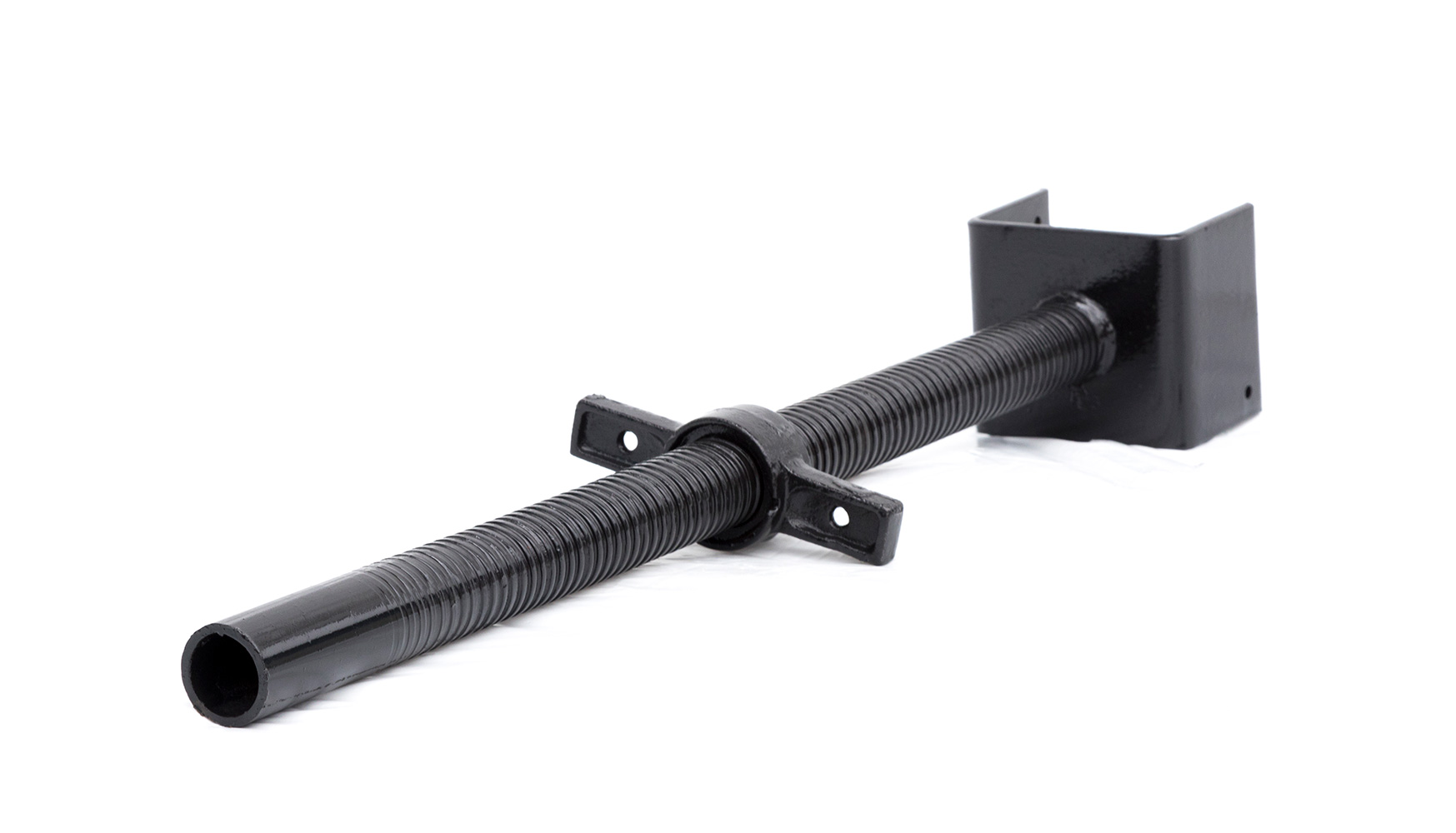

U-JACK DIMENSION
| TYPE | SIZE (mm) (W x H x L x T) |
| A | 100 x 75 x 100 x 6 |
| B | 110 x 80 x 100 x 6 |
U-Jack Dimension

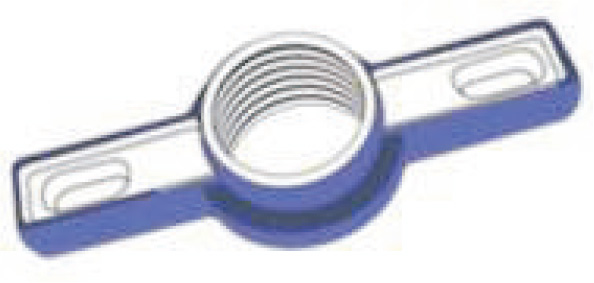

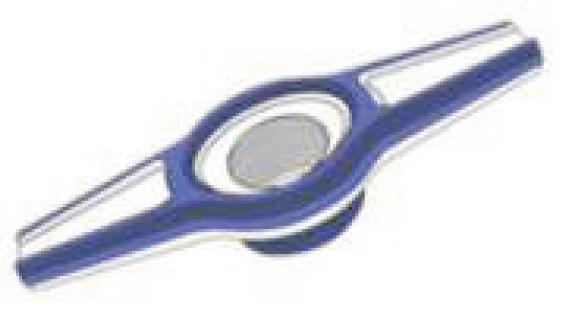

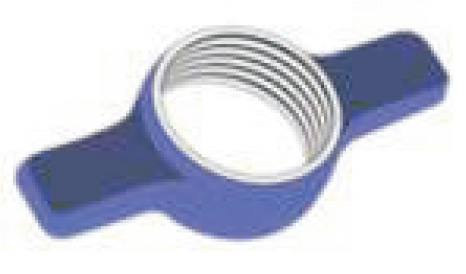

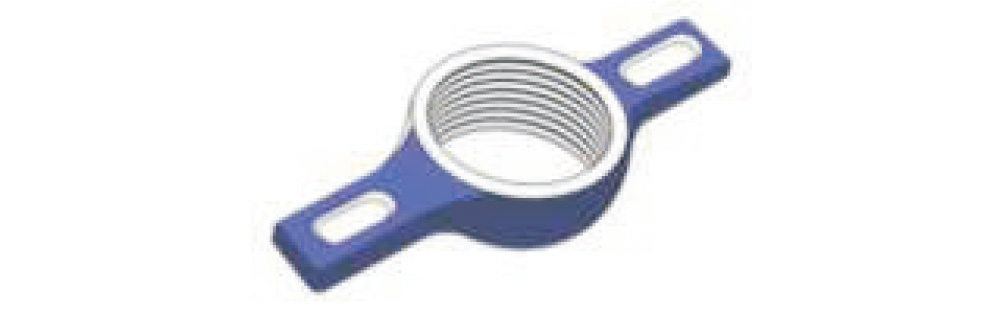

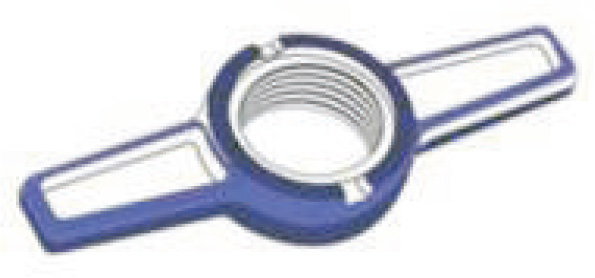

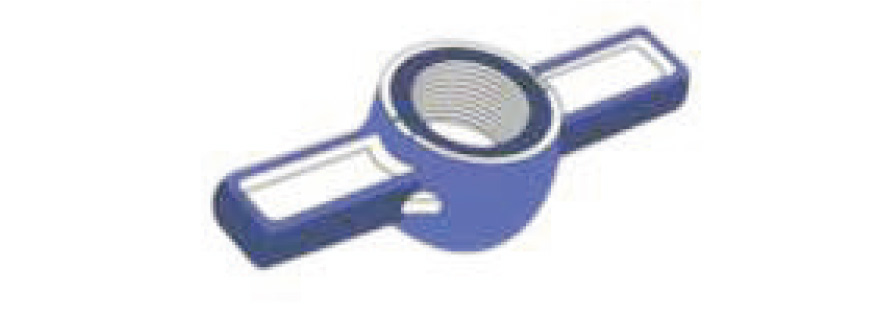

Jack Nut
| CODE | TUBE REST (mm) | THREAD | WEIGHT (kg) |
| SB - 1619-60 | - | M60 | 0.700 |
| CODE | TUBE REST (mm) | THREAD | WEIGHT (kg) |
| SB - 1619-34/42 | 42.00 | M34 | 0.540 |
| CODE | TUBE REST (mm) | THREAD | WEIGHT (kg) |
| SB - 1619-48/60 | 60 | M48 | 1.070 |
| CODE | TUBE REST (mm) | THREAD | WEIGHT (kg) |
| SB - 1619-48 | - | M34 | 1.200 |
| CODE | TUBE REST (mm) | THREAD | WEIGHT (kg) |
| SB - 1619-76 | - | M76 | 1.350 |
| CODE | TUBE REST (mm) | THREAD | WEIGHT (kg) |
| SB - 1619-38/48 | 48 60 |
M36 M48 |
0.840 |
THREAD SPECIFICATIONS: 4TPI (ACME) : M32, M34, M38, M48, M60, M76
ROUND 8MM PITCH : M38
